Dry Running Claw Pressure Vacuum Pumps | KLR 80 & 140

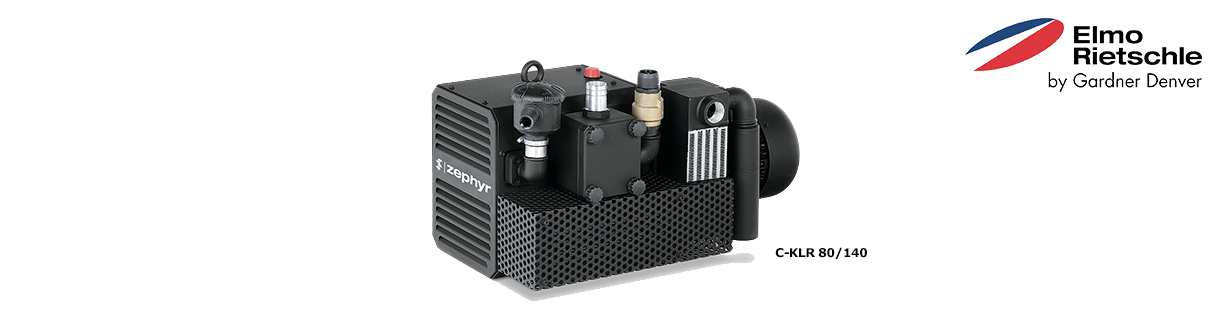

C-KLR 80 / 140
The Elmo Rietschle C-KLR 80 and C-KLR 140 combine vacuum and pressure generation in a single compact package. Utilizing advanced dry running claw technology, these pumps deliver reliable oil-free vacuum and compressed air while maintaining exceptional energy efficiency and low maintenance requirements.
Unlike conventional systems requiring separate vacuum pumps and compressors, the C-KLR Series provides independent vacuum and pressure operating points, offering greater flexibility for industrial processes that require both functions simultaneously. Integrated air cooling and an aftercooler eliminate the need for water cooling while ensuring low compressed-air discharge temperatures and dependable continuous-duty operation.
Why Choose C-KLR Pressure-Vacuum Pumps?
The C-KLR Series is designed for manufacturers seeking a compact and energy-efficient solution capable of generating both vacuum and pressure from a single machine.
Using contact-free claw compression, the pump operates without oil inside the compression chamber, eliminating contamination risks while reducing maintenance requirements and operating costs. The integrated cooling system, high-efficiency motor, and robust industrial construction make the C-KLR an excellent choice for demanding production environments.
Key Features
- Capacities from 57 to 82 CFM
- Vacuum up to 18 inHg (g)
- Pressure up to 10 PSIG
- Oil-free contact-free compression
- Independent vacuum and pressure operation
- Integrated air cooling
- Integrated aftercooler
- High-efficiency IE3 motor
- Low maintenance design
Typical vacuum pump applications
- Central vacuum systems
- CNC Routers
- Dental Industry
- Environmental/Soil Remediation
- Food processing
- Industrial applications
- Medical
- Packaging Industry
- Plastic Industry
- Pick and place
- Pneumatic conveying
- Vacuum drying
- Wood working
Why Choose Aircom Technologies?
Aircom Technologies helps manufacturers across Québec, Ontario, and Atlantic Canada optimize their industrial vacuum and pressure systems through expert equipment selection, application support, technical service, and maintenance programs.
As an authorized Elmo Rietschle distributor, Aircom provides complete support from equipment selection to long-term system optimization.
Aircom Advantages
- Authorized Elmo Rietschle distributor
- Industrial vacuum and pressure expertise
- Application and sizing assistance
- Genuine OEM replacement parts
- Preventive maintenance programs
- On-site service and repairs
- Emergency support
- Fast technical response
Frequently Asked Questions
What is a C-KLR pressure-vacuum pump?
A C-KLR pump generates both vacuum and pressure from a single oil-free claw machine.
What vacuum and pressure levels can C-KLR pumps achieve?
The C-KLR Series provides vacuum up to 18 inHg (g) and pressure up to 10 PSIG.
What are the advantages of claw technology?
Claw pumps offer oil-free operation, low maintenance, high efficiency, and long service life.
What applications are C-KLR pumps used for?
Typical applications include packaging, pneumatic conveying, food processing, medical equipment, and industrial automation.
Does Aircom provide service and replacement parts?
Yes. Aircom provides OEM parts, maintenance, repairs, and technical support for Elmo Rietschle C-KLR pumps.
Elmo Rietschle C-Series
| Model | Motor | Max. Flow | Max. Vacuum | Max. Pressure | Weight | Sound level | Connection | Data sheet | Quote request | |
| V / PH / HZ | HP | cfm | in Hg | psig | lbs | dB (A) | in | |||
| https://www.aircom.ca/b_pdf/ER_VP_C-Series/Vacuum-pumps-C-KLR-80-140-DA883.pdf | 230-460/3/60 or 575/3/60 | 5 (1800 rpm) | 57.1 | 17.1 | 8.7 | 219 | 83 | 1 1/4 | https://www.aircom.ca/b_pdf/ER_VP_C-Series/Vacuum-pumps-C-KLR-80-140-DA883.pdf | https://www.aircom.ca/fra/demande-de-soumission/ |
| https://www.aircom.ca/b_pdf/ER_VP_C-Series/Vacuum-pumps-C-KLR-80-140-DA883.pdf | 5 (3600 rpm) | 57.1 | ||||||||
| https://www.aircom.ca/b_pdf/ER_VP_C-Series/Vacuum-pumps-C-KLR-80-140-DA883.pdf | 7.5 | 57.1 | 10.2 | |||||||
| https://www.aircom.ca/b_pdf/ER_VP_C-Series/Vacuum-pumps-C-KLR-80-140-DA883.pdf | 10 | 81.3 | 374 | 84 | 1 1/2 |
The dry running claw - pressure and vacuum pump C-KLR 80/140 can be sold with or without a motor.
