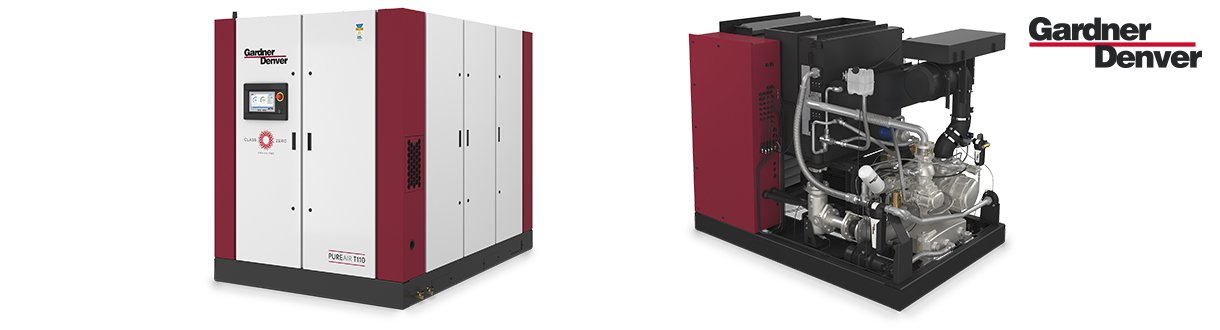

Rotary screw compressors - Gardner Denver PureAir T
The oil-free standard for processes where air purity is critical.
The Gardner Denver PureAir T is an ISO 8573-1 Class 0 (2010) certified oil-free two-stage fixed speed rotary screw air compressor, available from 75 to 450 HP (55 to 355 kW), delivering up to 1,916 ACFM at 115 PSIG with noise levels as low as 75 dB(A). Sold and serviced in Quebec by Aircom Technologies, authorized Gardner Denver distributor since 1999.
Class 0 oil-free air: Zero risk of contamination
The PureAir T delivers guaranteed 100% oil-free compressed air, certified ISO 8573-1 Class 0, the strictest purity class of the standard. No oil is injected into the compression chamber, so the compressor cannot introduce oil into your process, your product or your production environment.
Built to withstand 24/7 operation under demanding conditions, the PureAir T is the fixed speed choice for plants with steady air demand in pharmaceuticals, food and beverage, electronics and other regulated environments.
For variable or fluctuating demand, see the PureAir TVS variable speed model.
Why Choose the PureAir T Over a Lubricated Compressor?
Because it removes the risk of oil contamination at the source instead of relying on filtration.
A lubricated compressor injects oil into the compression chamber, then depends on downstream filters to capture oil aerosols, so air quality is only as reliable as filter maintenance. With the PureAir T, oil never enters the air stream.
- Class 0 certified: no oil added by the compressor
- Simplified air treatment: no oil-removal stage to maintain
- Process protection: reduced risk of batch rejection
- Compliance: meets the strictest purity class of ISO 8573-1
Why Choose Aircom
- Authorized Gardner Denver distributor and service center, a 100% Canadian company based in Kirkland since 1999
- Needs assessment to size your compressor and choose between fixed and variable speed
- Genuine OEM parts and service by factory-trained technicians, including Platinum Guard and Platinum Trust service programs
- Complete air treatment: Gardner Denver dryers, filters, receiver tanks, drains and nitrogen generators
- Service area: Montreal, Laval, Laurentides, Lanaudière, Montérégie, Eastern Townships, Centre-du-Québec, Mauricie, Outaouais, Abitibi-Témiscamingue and Northern Quebec
GD RotorArmor™: Built for Lasting Airend Efficiency
The airend rotors and housings are protected by GD RotorArmor™, a coating that creates both a chemical and a mechanical bond with the metal. According to Gardner Denver, some manufacturers use a soft PTFE-graphite top layer that seals well at first but wears quickly, reducing performance by 10% or more. RotorArmor is designed to maintain efficiency throughout the life of the compressor.
- Stainless steel 2nd stage rotors for corrosion protection
- Motor-driven oil pump lubricating the gears from start-up to complete stop
- Closed-loop water/glycol jacket cooling on 90 to 355 kW models, about 3% more efficient than oil-in-jacket cooling
Standard Package Features
- 99.5% efficient, 3-micron heavy-duty air filter
- Poppet-style non-return valve
- Long-life oil filter
- Flexible cooler connections
- Condensate separator with timed drain
- Pre-cooler against temperature spikes
- Remote-mounted pressure and temperature sensors
- TEFC cooling fan
- Stainless steel discharge piping (1st and 2nd stage)
- Quiet enclosure and compact footprint
Available Options
- Outdoor installation, NEMA 4
- Low ambient to 10°F (-12°C)
- High ambient to 131°F (55°C)
- Soft start
- Air-cooled or water-cooled
- Maximum working pressures: 110, 125 or 155 psig
- Energy recovery to supply hot water for other processes
- Engineered custom design for special requirements
GD Governor™ Controller and iConn Monitoring
Every PureAir T includes the GD Governor™ multilingual touchscreen controller, which logs operating data and sequences up to 4 compressors. Its iConn remote monitoring connection helps plan maintenance based on real operating data.
Technical Specifications, Fixed Speed, 60 Hz
| Model | HP | kW | PSIG | ACFM (60 Hz) |
|---|---|---|---|---|
| T55 | 75 | 55 | 100/115/145 | 366/344/296 |
| T75 | 100 | 75 | 100/115/145 | 480/454/407 |
| T90S | 125 | 90 | 100/115/145 | 591/549/506 |
| T90 | 125 | 90 | 100/115/145 | 631/597/530 |
| T110 | 150 | 110 | 100/115/145 | 749/713/645 |
| T132 | 175 | 132 | 100/115/145 | 856/819/750 |
| T160 | 215 | 160 | 100/115/145 | 955/919/855 |
| T185 | 250 | 185 | 100/115/145 | 1,265/1,141/1,000 |
| T220 | 300 | 220 | 100/115/145 | 1,485/1,370/1,257 |
| T260 | 350 | 260 | 100/115/145 | 1,601/1,560/1,442 |
| T300 | 400 | 300 | 100/115/145 | 1,840/1,777/1,598 |
| T355* | 450 | 355 | 115/145 | 1,916/1,803 |
Air-cooled models. Water-cooled versions deliver slightly higher flow. *T355 available in water-cooled version only.
Flow measured according to ISO 1217, 4th edition, Annex C and E. 100/115/145 psig = 6.9/8.6/10.3 bar.
Although we have made every effort to provide up-to-date and accurate information on this site, we cannot guarantee that all information is error-free. If any information is critical, please contact one of our technical representatives.
FAQ: Gardner Denver PureAir T
Why is ISO 8573-1 Class 0 certification essential?
Class 0 is the strictest air purity class of ISO 8573-1: the compressor adds no oil to the compressed air. In pharmaceutical, food and electronics production, it protects product integrity.
What is the performance range of the PureAir T?
12 models from 55 to 355 kW (75 to 450 HP), at 100, 115 or 145 PSIG, delivering about 296 to 1,916 ACFM (8.3 to 53.6 m³/min).
What is the difference between the PureAir T and the PureAir TVS?
The PureAir T runs at a constant speed for steady demand. The PureAir TVS adjusts its speed to actual consumption, reducing energy costs when demand fluctuates.
Looking for an oil-free compressor for your facility?
Aircom Technologies is your authorized Gardner Denver partner in Quebec. Our team will help you select the right PureAir T configuration for your process air quality requirements and production demands.
Call 514 695-4740 or 1 888 940-4740, or request information and a quote.
